Technical Specifications
| Model | HY-D600 | HY-D800 | HY-D1000 | HY-D1200 |
|---|---|---|---|---|
| Application | Heavy Duty Plastic Crushing | |||
| Suitable Materials | Thick plastic parts, industrial scrap, rigid plastics | |||
| Motor Power (kW) | 22 | 30 | 37 | 45 |
| Crushing Capacity (kg/h) | 500–1000 | 800–1500 | 1000–2000 | 1500–2500 |
| Rotor Type | V-Type Rotor (Low Speed High Torque) | |||
| Rotor Speed (rpm) | 350–500 | |||
| Feed Opening (mm) | 600 × 500 | 800 × 600 | 1000 × 800 | 1200 × 1000 |
| Machine Structure | Heavy-duty welded steel with vibration damping base | |||
| Bearing Design | External Bearing (Dust & Moisture Protection) | |||
| Machine Dimensions (mm) | 1800 × 1400 × 2000 | 2100 × 1600 × 2200 | 2400 × 1800 × 2400 | 2800 × 2000 × 2600 |
| Weight (kg) | 1500 | 2200 | 3000 | 4200 |
| Optional Features | Conveyor feeding, dust collection, soundproof system | |||
Heavy Duty Plastic Crusher for Thick and Rigid Materials
The heavy duty plastic crusher is specially designed for processing large, thick wall, and high hardness plastic materials. It is widely used in plastic recycling plants, injection molding workshops, and industrial waste processing environments.

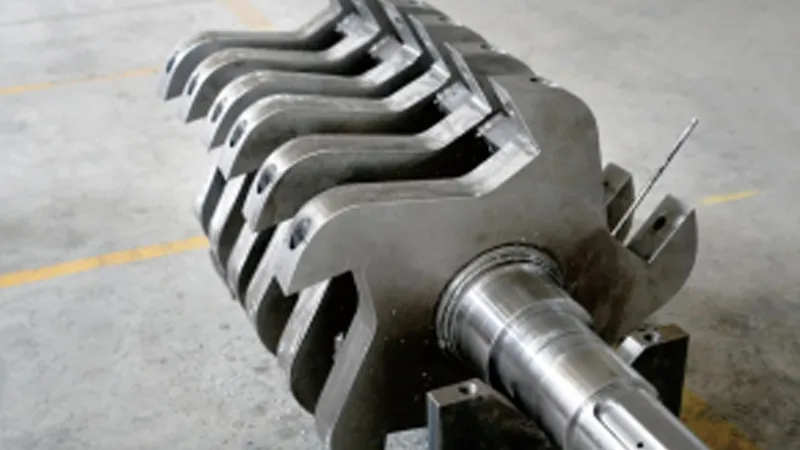

The machine features a V-type rotor design with low speed and high torque, providing strong cutting force while maintaining stable operation. This design is ideal for crushing bulky materials without pre-cutting, significantly improving processing efficiency. :contentReference[oaicite:0]{index=0}
The reinforced welded steel structure, vibration-resistant base, and external bearing design ensure long service life, reduced maintenance, and reliable continuous operation under heavy load conditions. :contentReference[oaicite:1]{index=1}
Key Advantages
- Strong Crushing Capability: Handles thick plastic parts, industrial scrap, and large rigid materials.
- No Pre-Cutting Required: Direct feeding of large plastic waste improves efficiency.
- V-Type Rotor Design: Enhances cutting performance and reduces energy consumption.
- Heavy-Duty Construction: Thick steel structure ensures long-term stable operation.
- External Bearing Design: Protects bearings from dust and moisture, extending service life.
- Easy Maintenance: Optimized chamber design reduces blade replacement time.
- Safe Operation: Equipped with emergency stop and safety interlock systems.
Applications of Heavy Duty Plastic Crushers
These crushers are widely used in industries that require processing of large and rigid plastic materials.
Plastic Recycling Plants
Processing industrial plastic waste and large rigid materials.
Injection & Extrusion Workshops
Crushing thick wall products and large head materials.
Automotive & Appliance Recycling
Processing plastic housings, bumpers, and industrial components.
Chemical & Packaging Industry
Handling industrial drums, containers, and packaging waste.
Frequently Asked Questions
What materials can this heavy duty crusher handle?
It is suitable for thick plastic parts, rigid plastics, industrial scrap, automotive parts, and large molded products.
Does it require pre-cutting of materials?
No, the machine is designed to handle large materials directly without pre-cutting.
What makes the V-type rotor design effective?
The V-type rotor improves cutting efficiency and ensures stable feeding and crushing performance.
Is it suitable for continuous industrial use?
Yes, it is built with a heavy-duty structure and designed for long-term continuous operation.
How does the external bearing design help?
It prevents dust and moisture from entering the bearing, reducing wear and extending service life.
