Technical Specifications
| Model | HY-H600 | HY-H800 | HY-H1000 |
|---|---|---|---|
| Application | Hollow Plastic Containers Crushing | ||
| Suitable Materials | Plastic drums, barrels, bottles, crates, hollow parts | ||
| Motor Power (kW) | 18.5 | 30 | 45 |
| Crushing Capacity (kg/h) | 400–800 | 600–1200 | 800–1500 |
| Blade Type | Heavy Duty Claw Blade | ||
| Rotor Diameter (mm) | 400 | 500 | 600 |
| Rotor Speed (rpm) | 450–600 | ||
| Feed Opening (mm) | 600 × 500 | 800 × 600 | 1000 × 800 |
| Screen Mesh Size (mm) | 6–15 (Adjustable) | ||
| Machine Dimensions (mm) | 1800 × 1300 × 2000 | 2100 × 1500 × 2300 | 2500 × 1800 × 2600 |
| Weight (kg) | 1200 | 1800 | 2600 |
| Optional Features | Dust collection system, conveyor feeding, soundproof enclosure | ||
Heavy Duty Hollow Plastic Crusher for Drums and Containers
The hollow plastic crusher is specifically designed for crushing large hollow plastic containers such as industrial drums, chemical barrels, plastic bottles, crates, and bulky plastic products without the need for pre-cutting.
Equipped with a powerful rotor and optimized blade structure, the machine delivers strong shear force and impact performance, allowing it to efficiently process elastic hollow materials without blockage or rebound issues. :contentReference[oaicite:0]{index=0}
The large feed opening allows operators to directly load whole containers, significantly improving processing efficiency in recycling plants and industrial waste handling operations. :contentReference[oaicite:1]{index=1}
Key Advantages
- No Pre-Cutting Required: Direct crushing of whole drums, barrels, and containers.
- Strong Crushing Force: Handles elastic hollow plastics without material rebound.
- Large Feed Opening: Improves efficiency by allowing bulk loading.

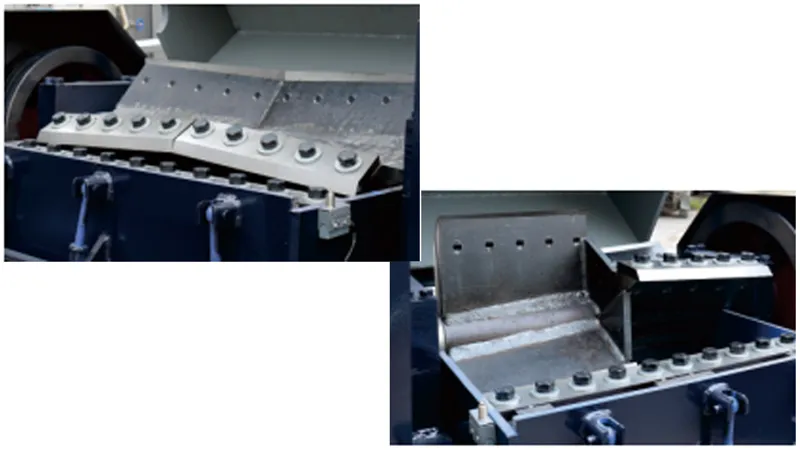

- Durable Blade System: Heat-treated alloy steel blades with high wear resistance and regrinding capability.
- Stable Machine Structure: Reinforced steel body ensures vibration resistance and long-term operation.
- Adjustable Output Size: Screen size can be adjusted from 6–15 mm.
- Safe and Reliable: Equipped with overload protection, emergency stop, and safety interlock system.
Applications of Hollow Plastic Crushers
These crushers are widely used for processing large hollow plastic waste in industrial and recycling environments.
Plastic Recycling Plants
Processing drums, barrels, and bulk plastic waste for recycling.
Chemical & Packaging Industry
Handling industrial containers and packaging waste materials.
Automotive & Appliance Recycling
Crushing plastic housings, bumpers, and large plastic components.
Injection & Extrusion Workshops
Processing large head materials and thick wall plastic products.
Frequently Asked Questions
Can this machine crush plastic drums without cutting?
Yes, the machine is designed to process whole plastic drums, barrels, and containers without pre-cutting.
What materials can it handle?
It can process plastic drums, bottles, crates, automotive parts, appliance housings, and other hollow plastic products.
Is it suitable for recycling plants?
Yes, it is widely used in plastic recycling plants and waste processing facilities for pre-crushing operations.
Can the output size be adjusted?
Yes, the screen mesh size can be adjusted between 6–15 mm depending on your processing requirements.
How does it prevent material blockage?
The optimized rotor and blade design provide strong shear force, reducing rebound and preventing material blockage during crushing.
