Technical Specifications
| Model | Vertical Stroke (mm) | Crosswise Stroke (mm) | Traverse Stroke (mm) | Take-Out Time (s) | Cycle Time (s) | Payload (kg) |
|---|---|---|---|---|---|---|
| HY-506i | 600 | 600 | 1200 | 1.92 | 6.3 | 5 |
| HY-506is | Pick:600 / Runner:650 | Pick:460 / Runner:460 | 1200 | 1.92 | 6.3 | 5 |
| HY-508i | 800 | 600 | 1400 | 1.34 | 6.7 | 5 |
| HY-508is | Pick:800 / Runner:850 | Pick:460 / Runner:460 | 1400 | 1.34 | 6.7 | 5 |
| HY-510i | 1000 | 800 | 1600 | 1.0 | 6.9 | 10 |
| HY-510is | Pick:1000 / Runner:1050 | Pick:660 / Runner:660 | 1600 | 1.0 | 6.9 | 10 |
| Model | Drive System | Air Pressure (MPa) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|
| HY-506i | AC Servo | 0.5 | 122 | 1865 × 1135 × 1417 |
| HY-506is | AC Servo | 0.5 | 136 | 1865 × 1135 × 1467 |
| HY-508i | AC Servo | 0.5 | 130 | 2065 × 1135 × 1617 |
| HY-508is | AC Servo | 0.5 | 142 | 2065 × 1135 × 1667 |
| HY-510i | AC Servo | 0.5 | 136 | 2265 × 1335 × 1817 |
| HY-510is | AC Servo | 0.5 | 150 | 2265 × 1335 × 1867 |
| Custom non-standard models are available upon request. | ||||

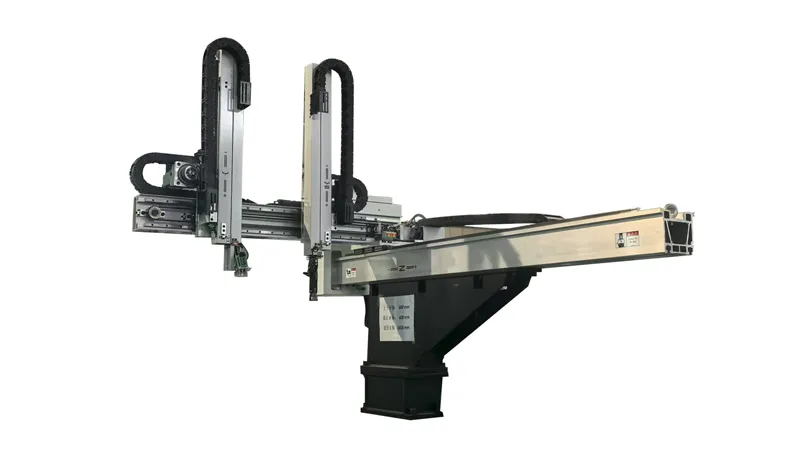

Servo Robot Arm for High Precision Industrial Automation
The servo robot arm is an advanced automation solution powered by high-performance servo motors, precision mechanical structures, and intelligent PLC control systems. It is designed to perform high-speed, high-precision, and repeatable operations in modern industrial production lines.
With accurate positioning, fast response, and flexible motion control, the robot arm can replace manual labor in tasks such as pick-and-place, loading and unloading, sorting, assembly, and material handling, significantly improving production efficiency while ensuring consistent product quality. :contentReference[oaicite:1]{index=1}
It is widely used in injection molding, stamping, electronics manufacturing, automotive production, and other industries where automation, precision, and reliability are critical. :contentReference[oaicite:2]{index=2}
Key Advantages

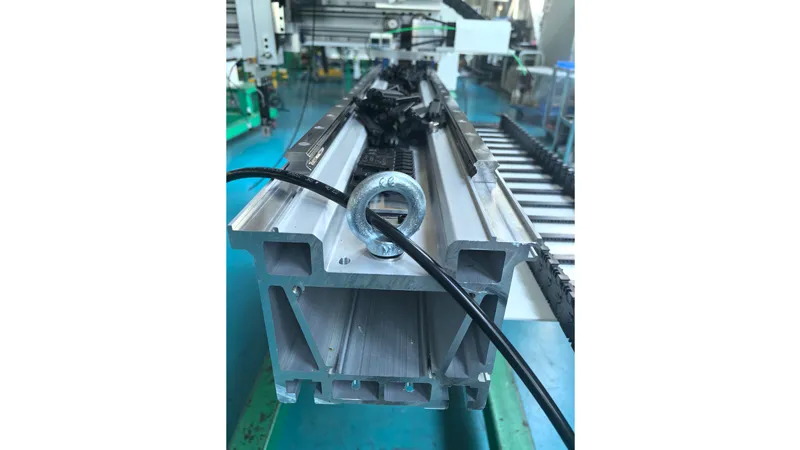

- High Precision Positioning: Servo motor + ball screw + linear guide system ensures accurate and repeatable movements.
- Fast and Efficient Operation: Improves productivity by 3–5 times compared to manual operations.
- Flexible Multi-Axis Design: Available in 3-axis, 5-axis and customized configurations for complex tasks.
- Multi-Function Capability: Supports gripping, suction, sorting, stacking, assembly and more.
- Stable and Reliable: Durable components ensure long service life and 24/7 continuous operation.
- Comprehensive Safety Protection: Includes emergency stop, limit protection, overload protection and safety sensors.

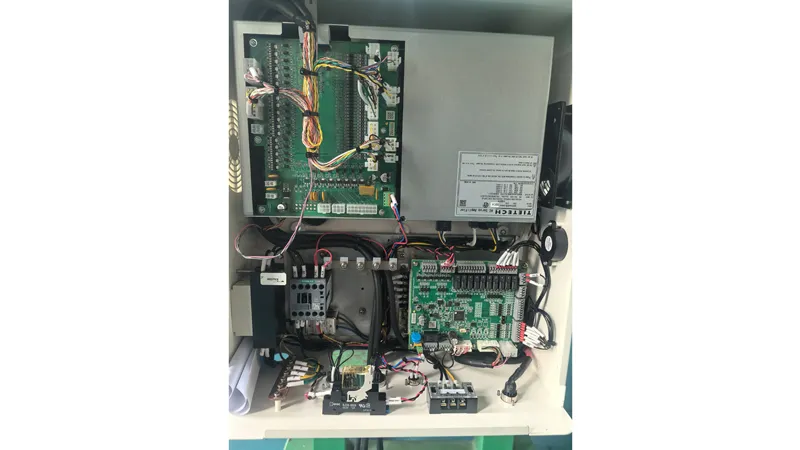

- Smart Control System: PLC touch screen interface with program storage and automatic operation modes.
Applications of Servo Robot Arms
Servo robot arms are widely used in industrial automation systems requiring precision, speed, and repeatability.
Injection Molding Industry
Automatic part removal, sprue separation, stacking and material handling.
Stamping Industry
Automated feeding and unloading for metal parts with improved safety.
Electronics Manufacturing
Precision handling, assembly and sorting of small electronic components.
Automotive Industry
Handling and assembly of automotive components with high efficiency.
Frequently Asked Questions
What is a servo robot arm?
It is an automated robotic system driven by servo motors, designed for precise and repeatable industrial operations.
What industries use servo robots?
They are widely used in injection molding, stamping, electronics, automotive manufacturing, and automated assembly lines.
Can it replace manual labor?
Yes, it significantly reduces labor costs and improves production efficiency and product consistency.
Can the robot be customized?
Yes, the number of axes, arm length, payload, and end tooling can be customized according to application needs.
Is it easy to operate?
Yes, it is equipped with a PLC control system and touch screen interface for easy programming and operation.
