Technical Specifications
| Model | Main Motor Power (kW) | Heating Power (kW) | Blower Power (W) | Speed (rpm) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| HY-300KG | 3.0 | 15 | 600 | 370 | 1100 × 2050 | 225 |
| HY-500KG | 3.0 | 15 | 600 | 370 | 1200 × 2400 | 252 |
| HY-1T | 4.0 | 15 | 600 | 370 | 1500 × 2800 | 371 |
| HY-2T | 5.5 | 15 | 600 | 370 | 1850 × 3100 | 450 |
| HY-3T | 7.5 | 15 | 600 | 370 | 2000 × 3600 | 550 |
| HY-5T | 8.0 | 15 | 600 | 370 | 2450 × 4100 | 700 |
| HY-8T | 11.0 | 24 | 600 | 340 | 2800 × 4800 | 1000 |
| HY-10T | 11.0 | 24 | 600 | 340 | 3000 × 5100 | 1500 |
| HY-12T | 15.0 | 24 | 600 | 340 | 3100 × 5600 | 2000 |
| HY-15T | 18.5 | 24 | 600 | 340 | 3200 × 6000 | 2500 |
| Custom non-standard models are available upon request. | ||||||
Large Vertical Mixer for Bulk Material and Industrial Production
The large vertical mixer is a heavy-duty mixing solution designed for high-capacity batch production. It is widely used in plastic processing, chemical materials, construction materials, feed production, and other industries requiring large-scale and uniform mixing.

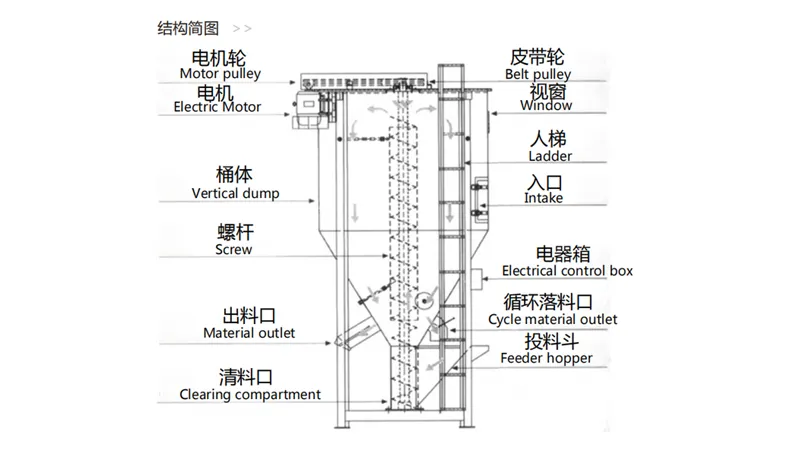

The machine adopts a vertical tank structure combined with spiral lifting and multi-paddle mixing, enabling materials to circulate from bottom to top and form a three-dimensional mixing flow. This ensures fast and highly uniform blending without dead zones or material accumulation. :contentReference[oaicite:0]{index=0}
With a mixing capacity ranging from 1 to 12 tons per batch, the machine significantly improves production efficiency while reducing labor and handling costs in large-scale operations. :contentReference[oaicite:1]{index=1}
Key Advantages
- High Mixing Efficiency: Achieves ≥99% uniformity with short mixing time.
- Large Capacity: Suitable for bulk production and centralized material preparation.
- 3D Mixing System: Spiral lifting + auxiliary paddles for complete material circulation.
- Space-Saving Design: Vertical structure reduces floor space by over 40%.
- Durable Construction: Stainless steel tank with heavy-duty transmission system.
- Energy Efficient: Optimized design reduces energy consumption by 20–30%.
- Easy Maintenance: Quick-open structure and external bearing design simplify servicing.
Applications of Large Vertical Mixers
Large vertical mixers are widely used in industries requiring bulk material mixing and high production efficiency.
Plastic Processing Industry
Mixing virgin and recycled plastic materials for injection molding and extrusion.
Chemical & Construction Materials
Batch mixing of dry mortar, pigments, fillers, and chemical powders.
Feed & Food Industry
Large-scale mixing of feed formulas and food-grade materials.
Central Feeding Systems
Serving as a centralized mixing unit for multiple production lines.
Frequently Asked Questions
What materials can this mixer handle?
It is suitable for plastic granules, powders, feed, chemical materials, and bulk industrial materials.
What is the mixing capacity?
The machine supports large batch mixing from 1 to 12 tons depending on the model.
How does the mixing system work?
The spiral lifts materials to the top while paddles disperse them, creating a continuous circulation for uniform mixing.
Is it suitable for continuous operation?
Yes, it is designed for 24-hour industrial operation with stable performance.
Does it save space compared to horizontal mixers?
Yes, the vertical design reduces floor space usage by over 40%.
