Technical Specifications
| Model | HY-600 | HY-800 | HY-1000 | HY-1200 |
|---|---|---|---|---|
| Application | Plastic, Wood, Rubber, Metal & Industrial Waste Shredding | |||
| Motor Power (kW) | 18.5 | 22 | 30 | 37 |
| Shredding Capacity (t/h) | 0.5–1 | 1–2 | 2–3 | 3–5 |
| Rotor Diameter (mm) | 300 | 350 | 400 | 450 |
| Rotor Speed (rpm) | 60–90 | |||
| Blade Material | Alloy Steel (Heat Treated) | |||
| Blade Type | Rotary + Fixed Blade Combination | |||
| Model | HY-600 | HY-800 | HY-1000 | HY-1200 |
|---|---|---|---|---|
| Feed Opening (mm) | 600 × 500 | 800 × 600 | 1000 × 800 | 1200 × 1000 |
| Machine Dimensions (mm) | 1800 × 1200 × 1800 | 2100 × 1400 × 2000 | 2400 × 1600 × 2200 | 2800 × 1800 × 2500 |
| Weight (kg) | 1500 | 2200 | 3000 | 4200 |
| Optional Features | Conveyor feeding system, hydraulic feeding system, dust collection, PLC control system | |||
Single Shaft Shredder for Industrial Waste and Recycling
The single shaft shredder is a powerful industrial machine designed to process large and bulky materials into smaller, manageable pieces for recycling and disposal. It is widely used in plastic recycling, wood processing, waste management, and industrial applications.
Using a combination of shearing, tearing, and squeezing forces, the shredder efficiently reduces the size of various materials such as plastic containers, wood waste, rubber, metal scrap, and general industrial waste. :contentReference[oaicite:0]{index=0}
Key Advantages
- High Efficiency Shredding: Processes large and bulky materials quickly with strong output capacity.
- Wide Material Compatibility: Suitable for plastics, wood, rubber, metals, and mixed waste materials.
- Durable Structure: Heavy-duty steel frame ensures long-term stable operation.

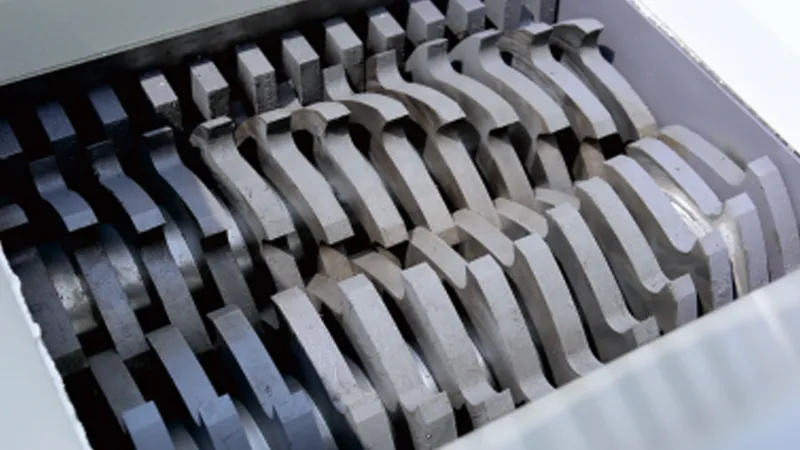

- Wear-Resistant Blades: Heat-treated alloy blades offer high durability and long service life.
- Continuous Operation: Designed for 24-hour industrial use with low failure rate.
- Safe Operation: Equipped with overload protection, emergency stop, and safety systems.
- Energy Efficient: Low energy consumption compared to traditional shredding equipment.
Applications of Single Shaft Shredders
Single shaft shredders are widely used across multiple industries for efficient material size reduction and recycling.
Plastic Recycling Industry
Processing plastic bottles, films, containers, and plastic scrap materials.
Wood Processing Industry
Shredding wood waste, furniture, boards, and branches.
Waste Management Industry
Reducing the volume of municipal and industrial waste.
Rubber & Tire Recycling
Processing used tires and rubber materials for recycling.
Frequently Asked Questions
What is a single shaft shredder used for?
It is used to shred large materials such as plastic, wood, rubber, and industrial waste into smaller pieces for recycling or disposal.
What materials can it process?
It can process plastic bottles, films, wood, rubber, metal scrap, tires, and general industrial waste.
Is it suitable for recycling plants?
Yes, it is widely used in recycling plants for waste reduction and material pre-processing.
Can it operate continuously?
Yes, the machine is designed for continuous industrial operation with stable performance.
Does it support automation?
Yes, it can be integrated with conveyor systems and automated feeding solutions.
